Can I Add Infrared Panels to a Traditional Sauna? Yes—Follow These 3 Rules
Can I Add Infrared Panels to a Traditional Sauna? Yes—Follow These 3 Rules
A traditional sauna can become a flexible dual-mode room without removing the original stove. The retrofit works when panel placement, clearance, and operating controls are planned correctly.
Traditional sauna infrared retrofit rules
- Do not install an infrared panel above the sauna stove.
- Maintain at least 20 inches (50 cm) between the stove and every infrared panel.
- Operate one heating system at a time—never both together.
What is a hybrid sauna retrofit?
A hybrid sauna retrofit adds a separate infrared heating mode to a room that already has a traditional sauna stove. The stove remains available for high-temperature air heat and steam-style sessions. The infrared panels provide direct radiant warmth at a lower room temperature.
| Feature | Traditional mode | Infrared mode |
|---|---|---|
| Heat source | Sauna stove and stones | Infrared wall and lower-body panels |
| Heating style | Heats the room air and interior surfaces | Provides direct radiant warmth toward the user |
| Typical experience | Higher-temperature traditional sauna session | Lower-temperature, targeted warmth |
| Operating rule | Select one mode. Never operate both systems together. | |
Sauna Parts World’s traditional sauna infrared upgrade guide shows how one existing room can support these two separate experiences.
Why add infrared panels to a traditional sauna?
Keep the traditional sauna experience
You do not have to remove a working sauna stove. Use the stove when you want traditional high heat and hot stones. Switch to the infrared system when you want direct warmth at a lower room temperature.
Add a faster, lower-temperature option
A traditional stove must warm the air, wood, benches, and stones. Infrared panels direct radiant warmth toward the occupied zones, so users can begin feeling heat without first bringing the entire room to a traditional sauna temperature.
Improve heat coverage around the body
Panels can be distributed behind the back, along the side walls, and near the lower legs. This arrangement can provide more balanced warmth than placing every emitter in one area.
Reuse a sound existing cabin
If the wood structure, benches, ventilation, insulation, and stove are still in good condition, a retrofit can add another heating experience without replacing the whole room.
What are the potential wellness benefits of far-infrared sauna heat?
Far-infrared sauna heat may support relaxation, temporary circulation responses, and post-exercise comfort at a lower room temperature than a traditional sauna. These are wellness uses—not proof that infrared heat treats disease, removes toxins, or replaces exercise or medical care.
Relaxation and muscle comfort
Warmth can help users relax and may ease the feeling of tight or stiff muscles. This makes infrared mode useful for quiet recovery, stretching, or a shorter relaxation session.
A lower-temperature heat response
Mayo Clinic explains that infrared saunas heat the body directly and can produce sweating and an increased heart rate at lower temperatures than conventional saunas.
Possible support for post-exercise recovery
A peer-reviewed systematic review of infrared radiation for musculoskeletal conditions reported promising reductions in pain measures across the included studies. Infrared remains a complementary approach and should not be presented as a cure or guaranteed treatment.
Three rules for adding infrared panels to a traditional sauna
1 Never install a panel above the sauna stove
The space above the stove is one of the hottest zones in the room. Rising heat and steam can expose an infrared panel, cable, connector, and nearby wood to conditions beyond the infrared system’s intended operating range.
Use wall areas behind or beside the seating instead. Do not place panels where they interfere with the stove’s required airflow, guard, or manufacturer clearance zone.
2 Keep panels at least 20 inches (50 cm) from the stove
Use 20 inches (50 cm) as the minimum project rule between the stove and every infrared panel. If the stove manual, panel manual, local code, or inspector requires a larger distance, the larger requirement controls.
This separation reduces direct heat exposure, lowers splash and steam risk, protects wiring and connectors, and preserves the stove’s surrounding safety zone.
3 Never operate both heating systems together
Traditional and infrared heat must function as separate modes. Use the stove for a traditional session or the panels for an infrared session, but never energize both systems at the same time.
Review hybrid sauna controller options and confirm that the selected controller, sensors, outputs, and operating logic match the final system.

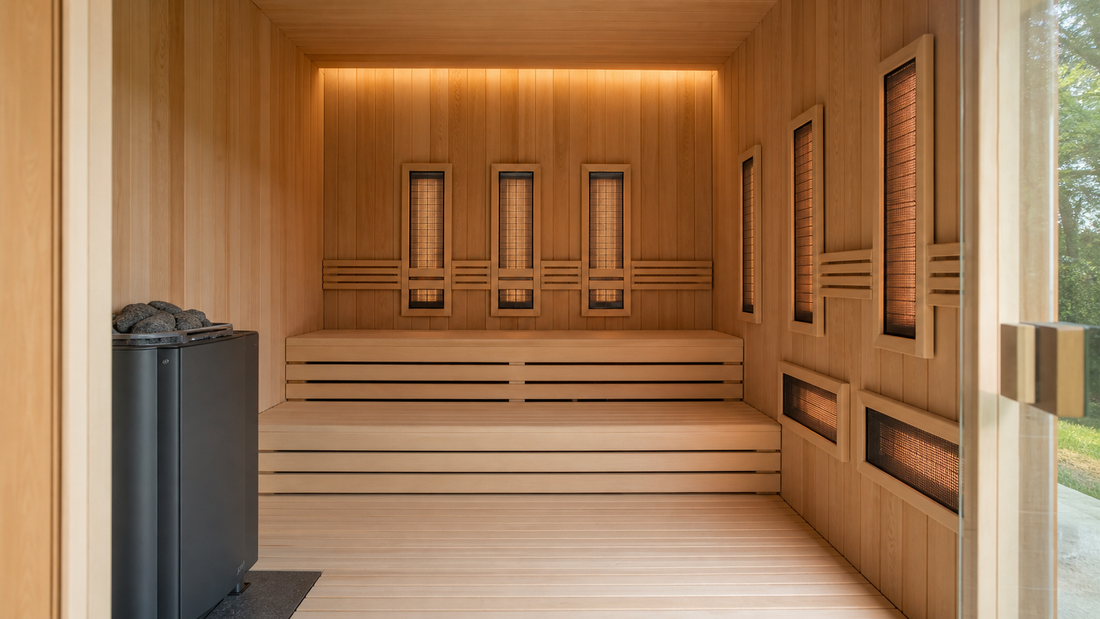

Where should infrared panels go in an existing sauna?
Useful panel locations include the back wall, side walls, calf area, and an approved under-bench position. Plan the layout around a seated user while keeping every component outside the stove clearance zone and away from water splash.
- Back wall: Primary radiant coverage for the torso and back.
- Side walls: More even coverage around the upper body.
- Lower-leg zone: Helps prevent a warm upper body with cool calves and feet.
- Under the bench: Use only when the heater manufacturer approves the position and required airflow remains open.
Do not install a panel where towels, cushions, clothing, or a user’s body can cover it. Do not place electrical connections in likely condensation or water-splash zones.
For a compact room, the 2,116W five-panel infrared sauna heater kit provides larger panels for back and side zones plus a smaller panel for lower-body coverage.
What should you verify before installing infrared panels?
- Interior dimensions: Measure the finished width, depth, and height.
- Stove information: Record its brand, model, power, and required clearances.
- Panel locations: Preserve the 20-inch minimum stove clearance.
- Temperature ratings: Confirm panels, wires, connectors, sensors, and guards are suitable for the environment.
- Electrical load: Match total wattage, voltage, controller output, wiring, and circuit protection.
- Control logic: Confirm the traditional and infrared systems cannot operate together.
- Moisture protection: Keep infrared equipment away from direct water and condensation paths.
As a planning example, a 2,116W infrared system draws approximately 17.6A at 120V or 8.8A at 240V before other loads and code requirements are considered. A qualified electrician must verify the circuit, wiring, grounding, and local requirements.
A pre-assembled option such as the 1,400W infrared heating module can reduce onsite framing work.
Frequently asked questions
Can you add infrared panels to an existing traditional sauna?
Yes. Keep every panel out of the space above the stove, maintain at least 20 inches (50 cm) from the stove, follow any larger manufacturer clearance, and operate only one heating system at a time.
How far should an infrared panel be from a sauna stove?
Use at least 20 inches (50 cm) as the minimum project clearance. If either equipment manual requires more space, use the larger clearance.
Can the sauna stove and infrared panels run at the same time?
No. Use the traditional sauna stove or the infrared panels, but never energize both heating systems together.
Where should infrared panels go in a traditional sauna?
Useful locations include the back wall, side walls, calf area, and an approved under-bench position. Keep panels away from the stove, water splash, and locations where they could be covered.
What are the benefits of adding infrared panels?
An infrared retrofit adds a lower-temperature mode, shorter warm-up, direct radiant warmth, and greater session flexibility while preserving the original sauna stove.
Plan your traditional sauna infrared upgrade
Send Sauna Parts World your interior dimensions, bench photos, stove model, voltage, and proposed panel locations. Compatibility should be checked before parts are selected.
