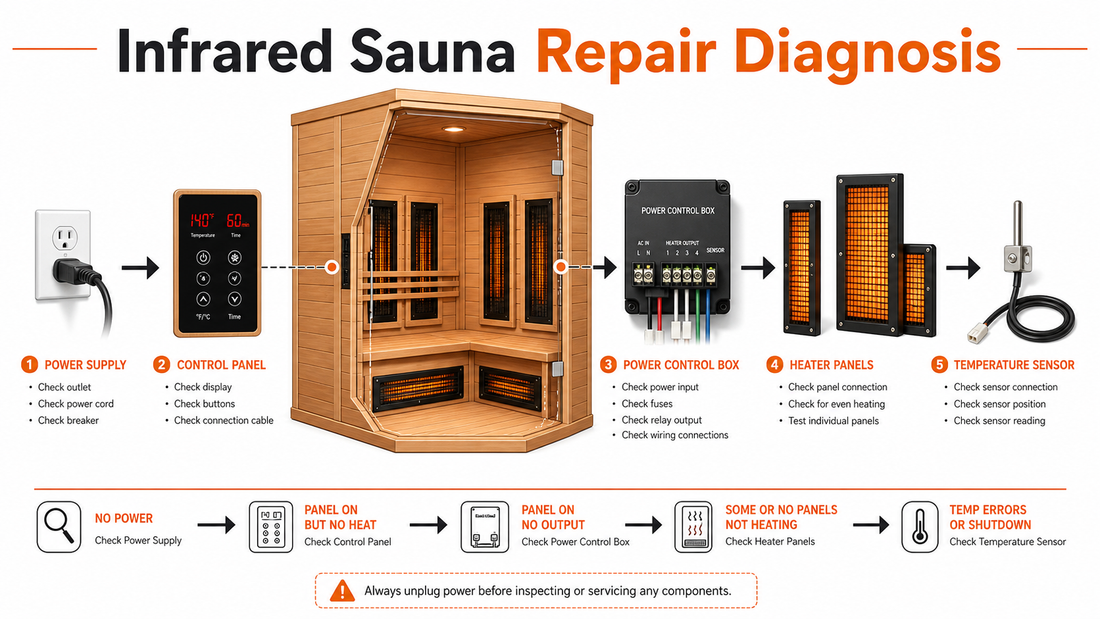

Infrared Sauna Repair: Diagnose No Heat or No Power

When an infrared sauna stops heating, the most expensive mistake is guessing. Many customers contact SaunaPartsWorld convinced their heater panels are dead, only to find the real issue is the power control box, control panel, temperature sensor, or a loose connector after moving the sauna.

This guide walks you through the same diagnostic logic we use when helping customers identify replacement parts. The goal is not to turn you into an electrician. The goal is to help you narrow the problem before you order parts, so you do not replace a good heater panel or buy a control panel that will not communicate with your old power box.

The rule of thumb: diagnose first, order second. If multiple heater panels are cold at the same time, the problem is usually not that every heater panel failed at once.

Table of Contents

• Symptoms This Guide Covers
• Step 1: Check the Outlet, Voltage, and Breaker First
• Step 2: Use the Control Panel Behavior to Split the Problem
• Step 3: If the Panel Turns On but There Is No Heat, Check the Power Control Box
• Step 4: If Only One Heater Panel Is Cold, Then Suspect the Panel or Its Wiring
• Step 5: Why the Control Panel and Power Control Box Must Match
• Step 6: Send These 5 Photos Before Ordering Parts
• What You Can DIY vs. When to Stop
• Quick Diagnosis Table
• FAQ

Symptoms This Guide Covers

Use this guide if your infrared sauna has one of these problems:

• The sauna will not turn on at all
• The control panel is completely blank
• The control panel lights up, but the buttons do not respond
• The control panel works, but the sauna does not heat
• One heater panel stays cold
• Multiple heater panels stay cold
• The sauna shuts off after a few minutes
• You hear a relay click, but there is no heat output
• The display shows an error code such as E0, E1, ERR, or a similar warning
• The original sauna brand is discontinued and you cannot find OEM parts
• The sauna stopped working after being moved, disassembled, or reassembled

If the issue is a wood panel, hinge, backrest, cup holder, light strip, or audio component, that is usually an accessory replacement problem rather than an electrical diagnosis.

Step 1: Check the Outlet, Voltage, and Breaker First

Do not start by opening the power box. Infrared saunas are high-load electrical appliances. The safest and fastest first step is to confirm the external power supply.

Check:

1. Is the wall outlet working?

2. Is the main power cord fully seated?

3. Is the power cord fully connected at the sauna end?

4. Has the breaker in your home’s electrical panel tripped?

5. Are you using an extension cord, power strip, adapter, or undersized outlet?

6. Is the sauna sharing a circuit with a space heater, dryer, air conditioner, or another high-draw appliance?

7. Is the plug, outlet, or cord warm, discolored, loose, or burnt?

Many 2-person, 3-person, and 4-person infrared saunas have specific voltage and amperage requirements. Some are 120V. Others may be 220V or 240V. Always check the sauna nameplate and the original manual. Do not rely on the brand name alone, because different production years and private-label models may use different electrical systems.

Do not replace a breaker with a larger breaker just to stop tripping. The breaker protects the wiring inside the wall. If the circuit is undersized, increasing the breaker size can create a fire hazard.

Step 2: Use the Control Panel Behavior to Split the Problem

The control panel gives you the first useful clue. A blank panel, a frozen panel, and a working panel with no heat all point to different parts of the system.

What You See	More Likely Problem	Check First
Completely blank display	Outlet, power cord, power supply, control panel power	Outlet, breaker, cord, power box
Display on, buttons not responding	Control panel logic or communication fault	Panel cable, control panel, power box
Display works, no heat	Power control box, relay, sensor, heater output	Power control box, temperature sensor
Error code on display	Sensor, door switch, communication, safety logic	Error code, sensor wiring, connectors
Shuts off after a few minutes	Overheat protection, bad sensor, power box issue	Ventilation, sensor, control box

In most infrared saunas, the control panel does not directly power the heater panels. It sends commands. The power control box, sometimes called the power output box, distributes power to the heater panels and accessories.

That means “the display works but there is no heat” does not automatically mean the control panel is good, and it does not automatically mean the heater panels are bad. It means you need to inspect the control system path.

Step 3: If the Panel Turns On but There Is No Heat, Check the Power Control Box

This is one of the most common infrared sauna repair scenarios.

If every heater panel is cold, or several heater panels are cold at the same time, the issue is usually upstream from the panels. Common causes include:

• The power control box is not sending heater output
• A relay clicks but does not actually pass power
• The control panel is not communicating with the power box
• The temperature sensor is reading incorrectly
• A high-limit or safety circuit is preventing heating
• A fuse, transformer, PCB, or output terminal inside the power box has failed
• A main harness connector loosened during moving or reassembly

Safe checks you can do:

• Turn off power and take clear photos
• Check whether visible connectors are fully seated
• Look for burnt, melted, or discolored terminals
• Check for pinched wires after reassembly
• Note whether you hear a relay click when heat should turn on

Do not:

• Open the power box while the sauna is plugged in
• Bypass a relay
• Bypass a fuse, high-limit switch, or temperature protection
• Mix a random control panel with a random power box
• Swap heater wires around “just to test”

If the power box smells burnt, has black marks, melted terminals, or a hot plug, stop using the sauna. At that point, continued testing is not useful. You need part identification or a qualified technician.

Step 4: If Only One Heater Panel Is Cold, Then Suspect the Panel or Its Wiring

A single cold heater panel is different from an entire sauna not heating.

If every other panel heats normally and only one panel stays cold, the likely causes are:

• Loose connector for that panel
• Damaged wire harness
• Failed heater panel
• Bad output channel for that specific panel

Work through it in this order:

1. Identify which panel is cold: back, side, calf, floor, or front panel.

2. Think about what changed recently: moving, disassembly, new control kit, or wiring work.

3. Turn off power and inspect the connector for that specific heater panel.

4. Look for pinched, pulled, oxidized, or broken wiring.

5. Photograph the heater panel label, connector, and installation location.

Before ordering a replacement heater panel, confirm:

• Heater type: carbon, ceramic, full spectrum, mica, or another style
• Rated voltage
• Rated wattage
• Physical dimensions
• Mounting location
• Connector shape and pin count
• Any model number or label on the original panel

Do not order based only on “my sauna is a [brand name].” Many infrared sauna brands use OEM or private-label parts. The same brand may use different control systems and heater panels across different years.

Step 5: Why the Control Panel and Power Control Box Must Match

An infrared sauna control panel and power control box are usually not universal standalone parts. They may use different communication protocols, sensor types, software logic, relay layouts, timer settings, lighting outputs, and safety logic.

If you install a control panel that “looks close” but does not match the old power box, you may get:

• Display turns on but no heat
• Heat cannot be controlled correctly
• Wrong temperature readings
• Timer problems
• Light or accessory failure
• Communication errors
• Unstable or unsafe operation

That is why we often treat the control panel and power control box as a matched control system. For discontinued brands, older private-label saunas, and models where OEM parts are unavailable, a universal infrared sauna control kit may be a better solution than hunting for old stock.

Avoid these two mistakes:

1. Buying only a control panel, then discovering it cannot communicate with your old power box.

2. Buying only a power box, then discovering your old control panel cannot control it.

If you are not sure, send photos before ordering.

Step 6: Send These 5 Photos Before Ordering Parts

When we help customers match infrared sauna parts, the brand name is useful, but it is not enough. Compatibility depends on voltage, wattage, connector style, wiring layout, and control logic.

Send clear photos of:

1. Control panel front: buttons, display, and layout.

2. Control panel back: label, plug, ribbon cable, and connector.

3. Power control box label: voltage, model number, output rating, and wiring diagram if present.

4. Internal connectors and terminals: plug shape, wire colors, pin count, and terminal labels.

5. Sauna nameplate and heater panel label: brand, model, voltage, wattage, and panel information.

Also send photos of any obvious damage:

• Burnt PCB
• Melted terminal
• Broken harness
• Chewed wire
• Discolored plug
• Old part numbers or stickers

The clearer the photos, the faster we can tell whether you need a control kit, power box, control panel, heater panel, temperature sensor, or wiring repair.

What You Can DIY vs. When to Stop

Reasonable DIY checks:

• Take photos
• Check the outlet
• Check the breaker
• Confirm the power cord is fully seated
• Use the reset procedure in the manual
• Inspect visible connectors with power disconnected
• Replace plug-in parts that are clearly supported by the kit instructions

Stop and call a qualified electrician or technician if:

• You smell burning
• You see smoke or melted plastic
• The plug, outlet, or power cord is hot or discolored
• The breaker trips repeatedly
• A GFCI trips repeatedly
• The power box has black marks or melted terminals
• You need to add an outlet, change wiring, or change a breaker
• You need to crimp terminals or modify high-voltage wiring
• You are tempted to bypass a fuse, thermostat, high-limit switch, or sensor
• You are not sure whether the sauna is 120V, 220V, or 240V

An infrared sauna combines wood, heat, electricity, and a small enclosed space. The repair goal is not to make it heat once. The goal is to make it heat safely over many cycles.

Quick Diagnosis Table

Symptom	Check First	Recommended Next Step
No power at all	Outlet, breaker, power cord, power box	Confirm external power before ordering parts
Control panel on, no heat	Power control box, relay, sensor, communication	Do not order heater panels first
One heater panel cold	That panel, connector, harness, output channel	Photograph panel label and connector
Multiple heater panels cold	Power control box or control system	Consider matched control panel + power box
Shuts off after minutes	Protection circuit, sensor, overheating, power box	Stop testing until the cause is known
Relay clicks, no heat	Relay/output failure in power box	Inspect power control box
Error code	Sensor, communication, door switch, safety logic	Record code and send photos

Bottom Line: Diagnose the System Before Replacing Parts

If your infrared sauna will not turn on or will not heat, you do not automatically need a new sauna. You also do not automatically need new heater panels.

Use this order:

1. Confirm outlet, voltage, cord, and breaker.

2. Observe the control panel behavior.

3. If multiple panels are cold, inspect the power control box and control system first.

4. If only one panel is cold, inspect that heater panel and its wiring.

5. Treat the control panel and power box as a matched system unless compatibility is confirmed.

6. Send clear photos before ordering parts.

Need help identifying the right part? Send SaunaPartsWorld photos of the control panel, power control box, wiring terminals, nameplate, heater panel label, and damaged area. We will help you determine whether you need a control kit, power box, heater panel, sensor, or another part.

Get help before you order:

FAQ

My infrared sauna control panel turns on, but there is no heat. Are the heater panels bad?

Not necessarily. If multiple heater panels are cold, the more likely issue is the power control box, relay output, temperature sensor, communication, or safety logic. A single cold panel is more likely to be a panel or wiring issue.

Can I replace only the infrared sauna control panel?

Sometimes, but do not assume it will work. The control panel and power control box often need to match. If the communication protocol or wiring layout is different, the new panel may turn on but fail to control heat.

Can an old discontinued infrared sauna still be repaired?

Often, yes. If the wood cabinet is still in good condition, many saunas can be repaired with compatible control systems, heater panels, sensors, and wiring components. Matching voltage, wattage, connectors, and control logic is the key.

What photos should I send before ordering sauna parts?

Send the control panel front and back, power control box label, wiring terminals/connectors, sauna nameplate, heater panel label, and any damaged area. Include the symptom: no power, no heat, one cold panel, breaker trip, error code, or automatic shutoff.

Is it safe to keep resetting a tripped breaker?

No. One trip may point to an overloaded circuit, but repeated tripping can indicate a serious electrical fault. Stop using the sauna if the breaker or GFCI trips repeatedly, or if the plug, outlet, cord, or power box shows heat damage.
