DIY Far Infrared Sauna Heating Panel Module – 1200W, Easy Install, No Cutting Required | W1200
DIY Far Infrared Sauna Heating Panel Module – 1200W, Easy Install, No Cutting Required | W1200
Regular price
$550.00 USD
Regular price
$800.00 USD
Sale price
$550.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

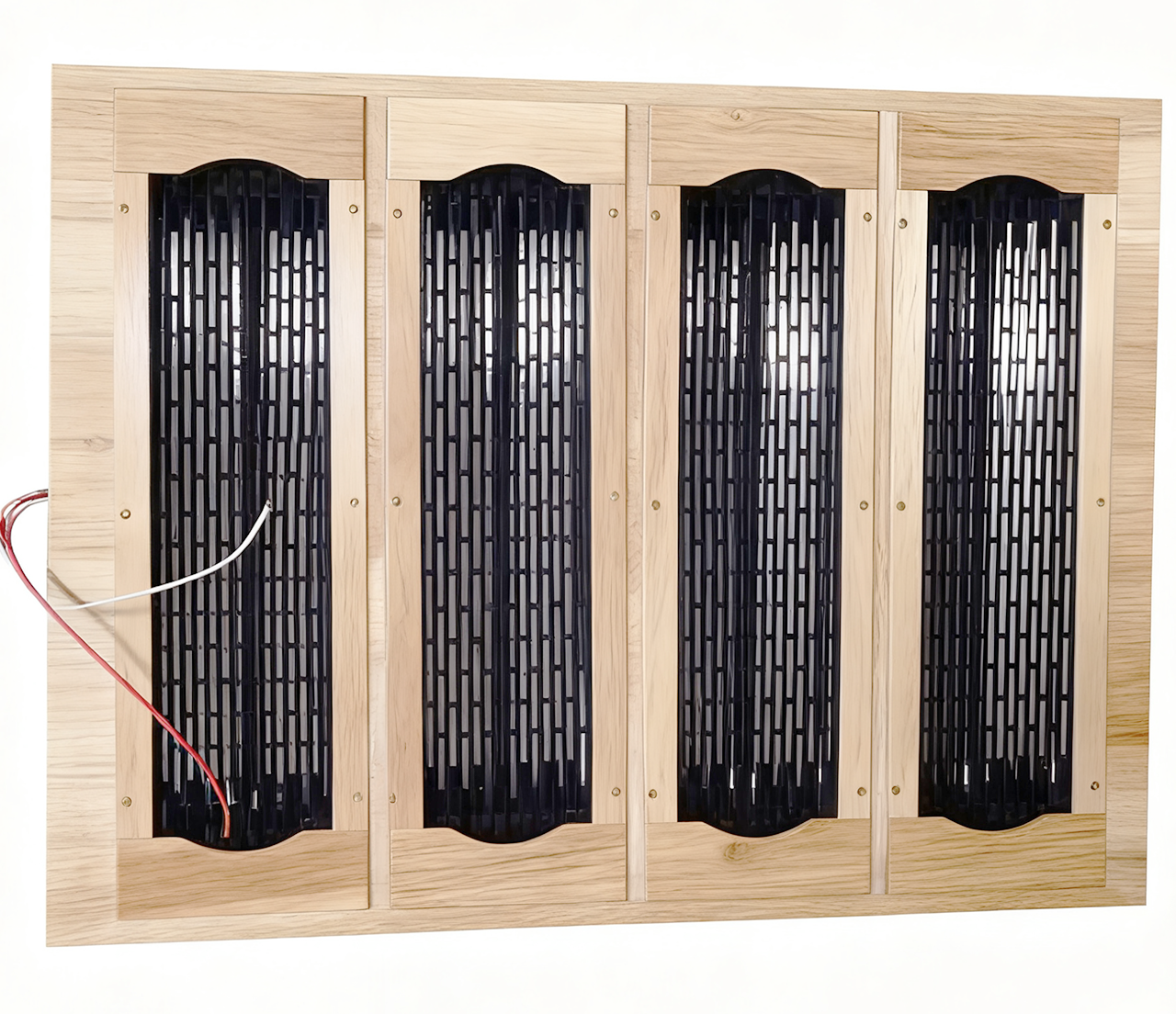

DIY Infrared Sauna Heater Module – 1200W & Play Full Spectrum Heating Panel (100×80cm)

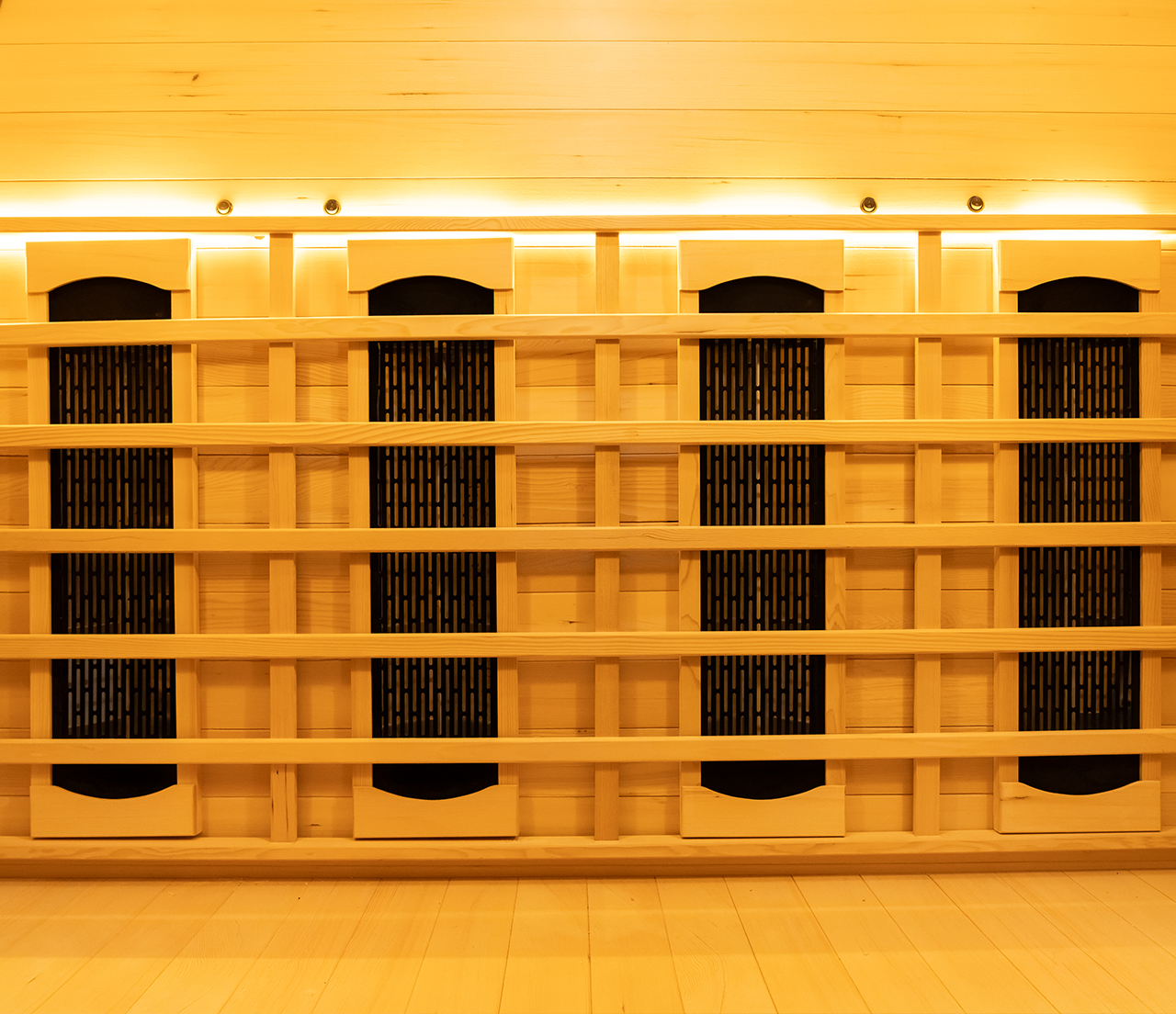

Build your own infrared sauna or hot yoga room with ease. This 1200W full-spectrum heating panel mounts directly to wooden walls — no wall cutting or professional installation required. Custom sizes available.
Key Features
- No wall cutting or special installation required — mounts directly to wooden surfaces with screws.
- Plug & Play design — pre-wired, compatible with standard sauna controllers and thermostats.
- Powerful & efficient — 4 infrared tubes, total 1200W full-spectrum heating.
- Standard size — 100×80cm (height), fits most small sauna layouts.
- Expandable & customizable — combine multiple modules or order custom sizes.
- Multi-purpose — ideal for infrared saunas, hot yoga studios, or meditation rooms.
Specifications
| Item | Details |
|---|---|
| Model | DIY Infrared Sauna Heater Module |
| Power | 1200W (4 × infrared heating tubes) |
| Dimensions | 100 × 80 cm (H × W, standard module) |
| Voltage | 110V -240V |
| Installation | Wall-mounted with screws (no grooving required) |
| Material | High-temperature aluminum backplate + wooden protective frame |
| Recommended Room Size | Up to 1m³ per module |
| Applications | Infrared sauna room, yoga studio, meditation space |
| Customization | Available upon request (custom size ) |
What’s Included
- 1 × 1200W Infrared Heating Module (100×80cm)
- Pre-wired connection cable
Installation & Use
- Choose a dry wooden wall area free of flammable materials.
- Mark mounting points and fasten the module securely with the provided screws.
- Connect the pre-wired cable to your sauna controller or power switch (by a qualified electrician).
- Turn on and set your desired temperature to enjoy full-spectrum infrared warmth.
Note: While this product is designed for easy DIY installation, electrical connections should always be completed by a certified electrician for safety and compliance.
Frequently Asked Questions
Q1: Do I need professional installation?
No. The physical mounting is simple and requires only screws. However, power connection should be done by a qualified electrician to ensure safety and compliance.
Q2: Can I connect multiple modules together?
Yes. You can combine several panels based on your sauna’s size and desired heat level. Typically, 1–2 modules are suitable for 3m³, and 2–3 modules for 3–5m³ rooms.
Q3: Can I order custom sizes or power options?
Absolutely. We offer custom-built modules with different dimensions and wattages. Please contact us with your specific requirements.
Q4: How do I connect it to my sauna controller?
The module comes pre-wired and can be connected directly to most infrared sauna controllers or power switches. For safety, have an electrician handle the connection according to local regulations.
Q5: Is it safe for long continuous operation?
Yes. It’s designed for high-temperature environments and supports continuous operation when used with proper thermal controls.
infrared sauna heater module, DIY infrared sauna kit, sauna heating panel, full spectrum infrared heater, infrared wall panel, plug and play sauna module, home infrared sauna system, far infrared heater, sauna parts, sauna heating module
Need customization or bulk orders?
We can manufacture custom sizes and power ratings. Contact us before ordering with your room dimensions and voltage to receive tailored recommendations.
