DIY Infrared Sauna Heater IR Panel Kit (5 Panels) – 2116W | 110-240V

$899.00 USD

~~$1,099.00 USD~~ $899.00 USD

Распродажа Продано

Стоимость доставки рассчитывается при оформлении заказа.

Voltage 110-120V 220-240V

Количество

2-Year Warranty
Technical Support
Guaranteed Compatibility

FREE TECHNICAL SUPPORT | TEXT US: 702-348-0250

DIY Far Infrared Sauna Heater Panel Kit (5 Panels) – 2116W | 110–220V Universal

A complete solution for building or upgrading your sauna into a modern far infrared system.

Whether you're starting a DIY sauna project or converting a traditional sauna, this kit provides efficient, even, and deeply penetrating infrared heat with simple plug-and-play installation.

What's Included in This Kit

Everything you need to build or upgrade your infrared sauna system.

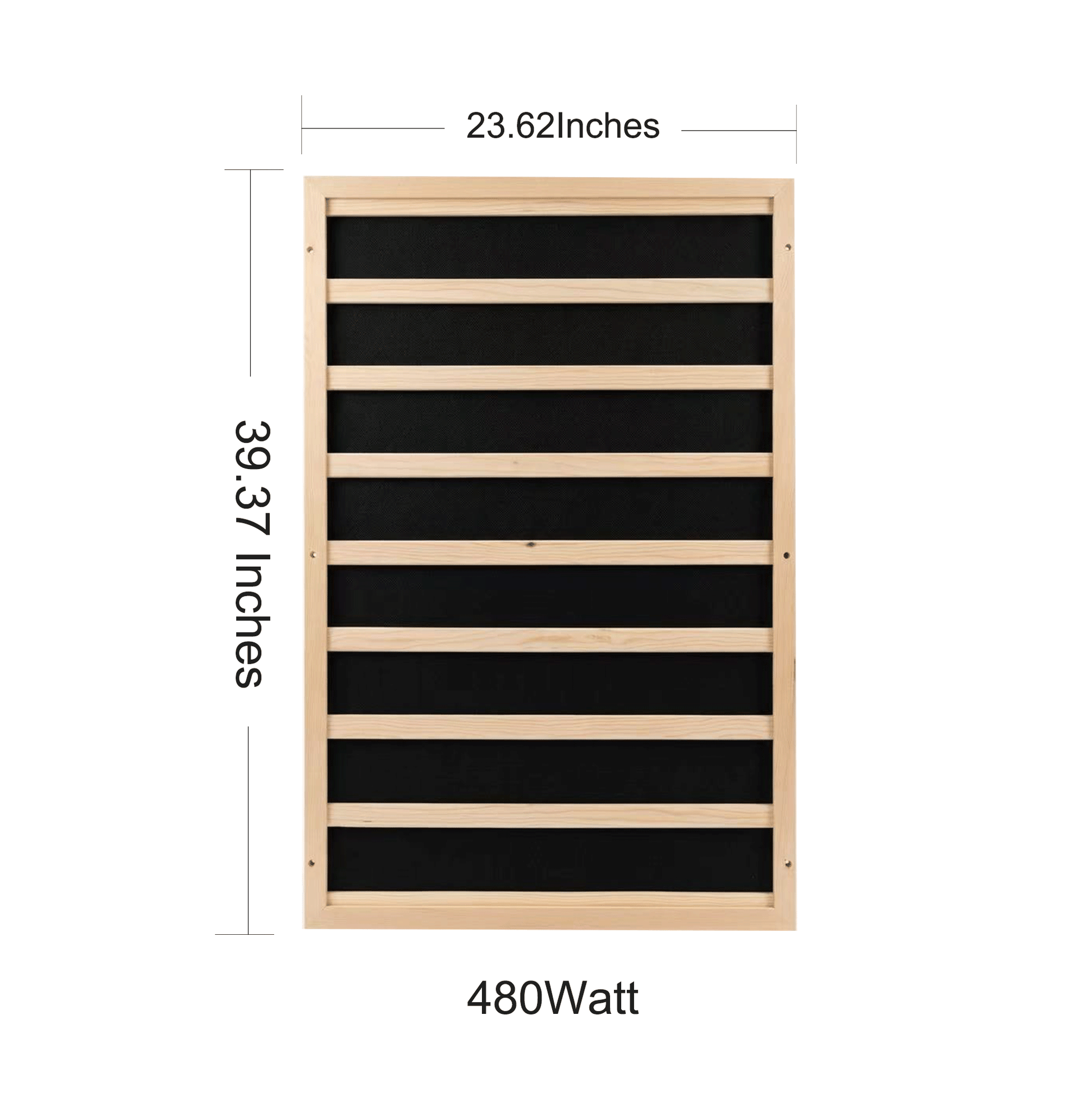

Far Infrared Heater Panels — Large

Size 60 × 100 cm / 23.62 × 39.37 inches

Power 480W each

Quantity 4 panels

Recommended Use Main heating panels for back wall and side wall installation.

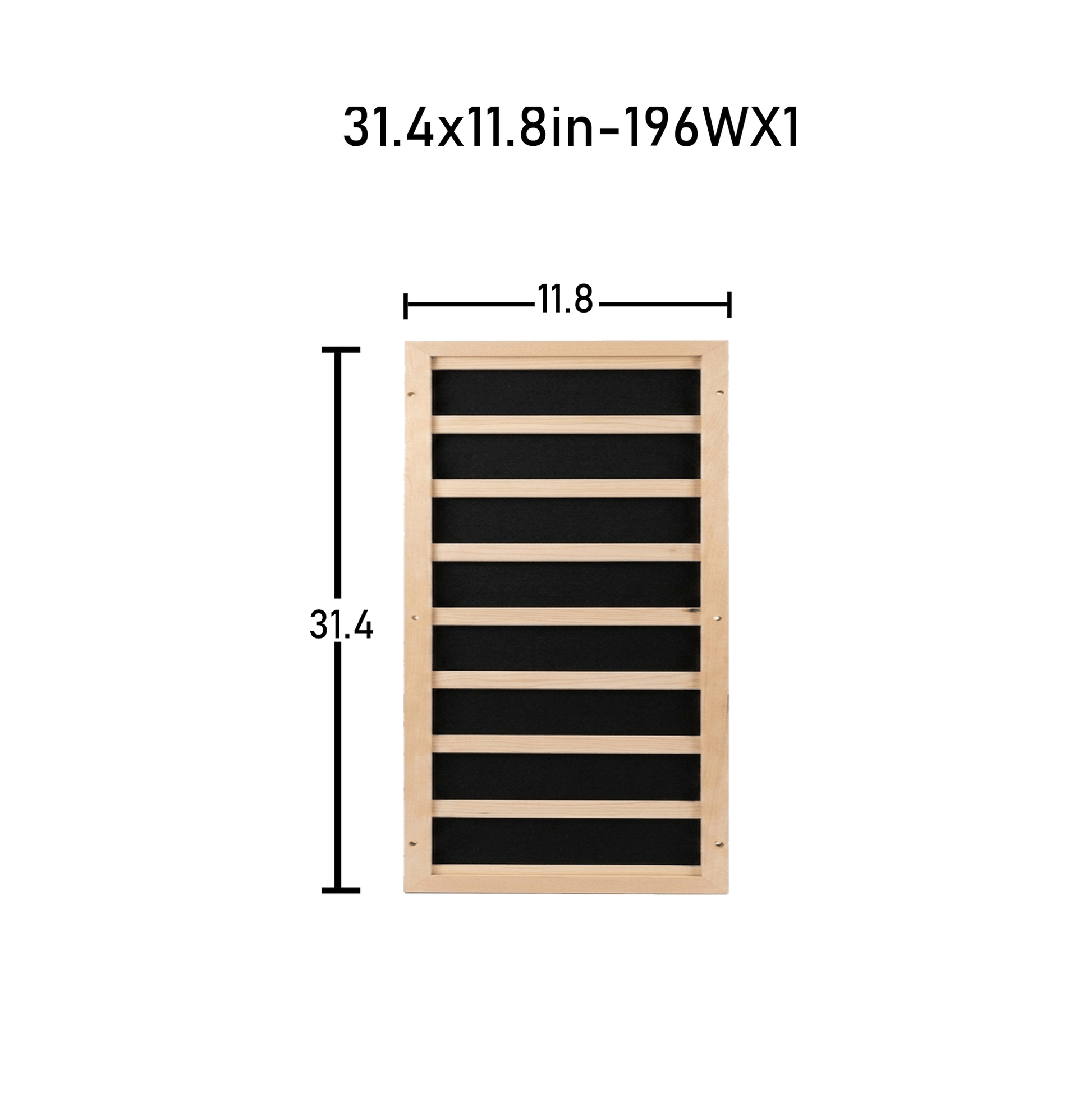

Far Infrared Heater Panel — Small

Size 30 × 80 cm / 11.81 × 31.50 inches

Power 196W

Quantity 1 panel

Recommended Use Ideal for leg area or lower body heating zone.

Canadian Hemlock Wooden Frames

Material Sauna-grade Canadian Hemlock wood

Quantity 5 wooden frames

Purpose Provides structural support, thermal insulation, and a clean sauna-ready finish.

Pre-installed Power Cables

Cable Length 2 meters each

Quantity 5 pre-installed power cables

Benefit Flexible installation with sufficient cable length for most sauna layouts.

Plug & Play Connectors

Connector Type Controller-compatible plug-and-play connectors

Quantity 5 sets

Compatibility Compatible with SaunaPartsWorld control systems.

Mounting Hardware

Included Mounting screws included

Quantity 1 installation hardware set

Purpose For secure and easy panel installation.

No additional accessories required for installation
Fully compatible with SaunaPartsWorld control systems
Designed for both DIY builds and sauna upgrade projects

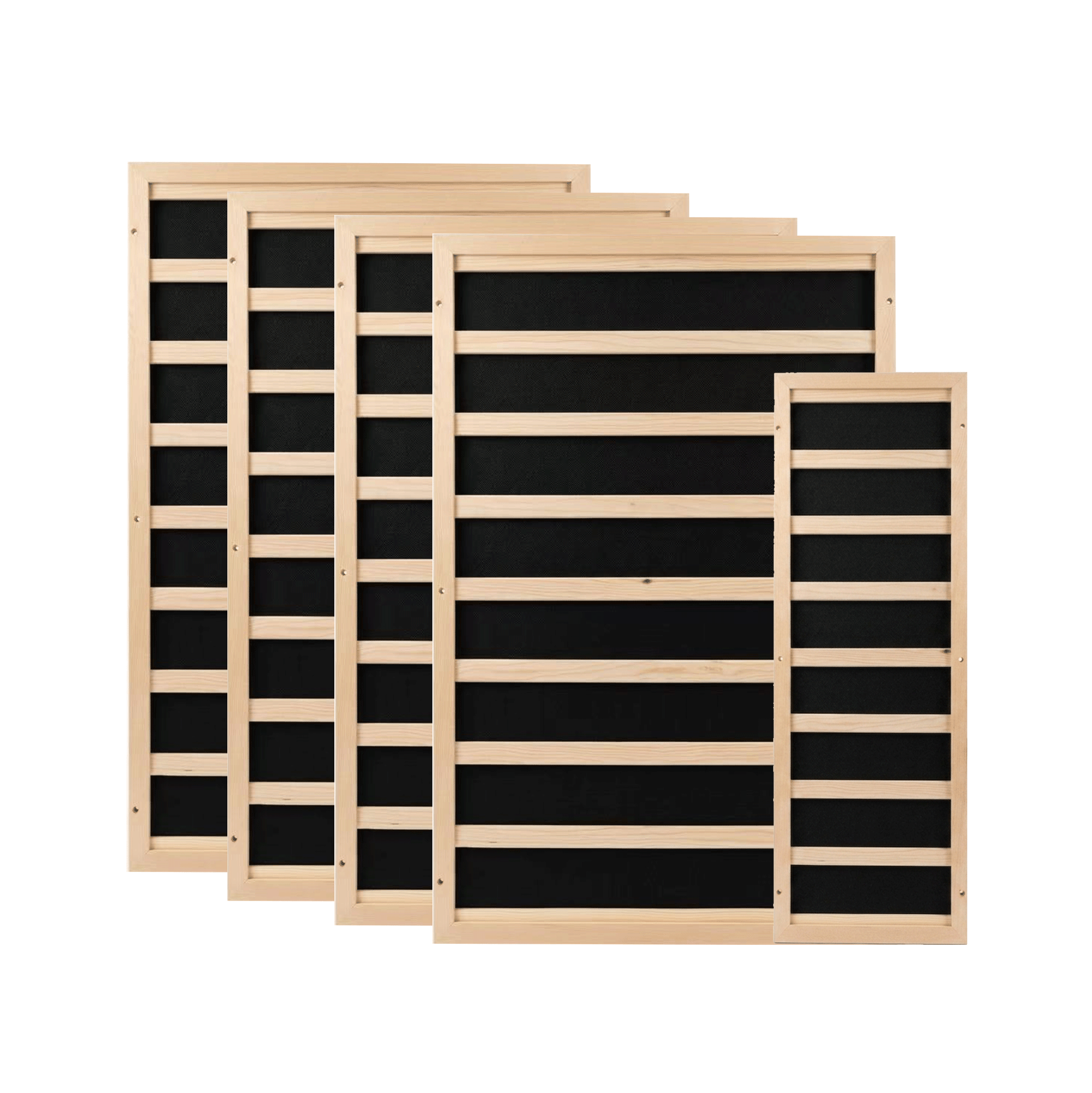

Kit Configuration

Key specifications of the complete infrared sauna heater panel kit.

Large Panels 4 pieces — 60 × 100 cm / 23.62 × 39.37 inches / 480W each

Small Panel 1 piece — 30 × 80 cm / 11.81 × 31.50 inches / 196W

Total Power 2116W total output

Voltage 110V–220V universal system compatibility

Recommended Circuit Dedicated circuit recommended for full-load operation. Circuit requirements may vary depending on voltage and local electrical code.

Cable Length Each panel includes a pre-installed 2-meter power cable.

Frame Material Canadian Hemlock wooden frame for sauna-grade installation.

Installation Type Plug-and-play design when used with compatible SaunaPartsWorld controllers.

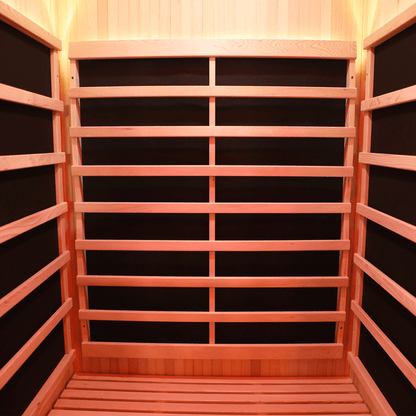

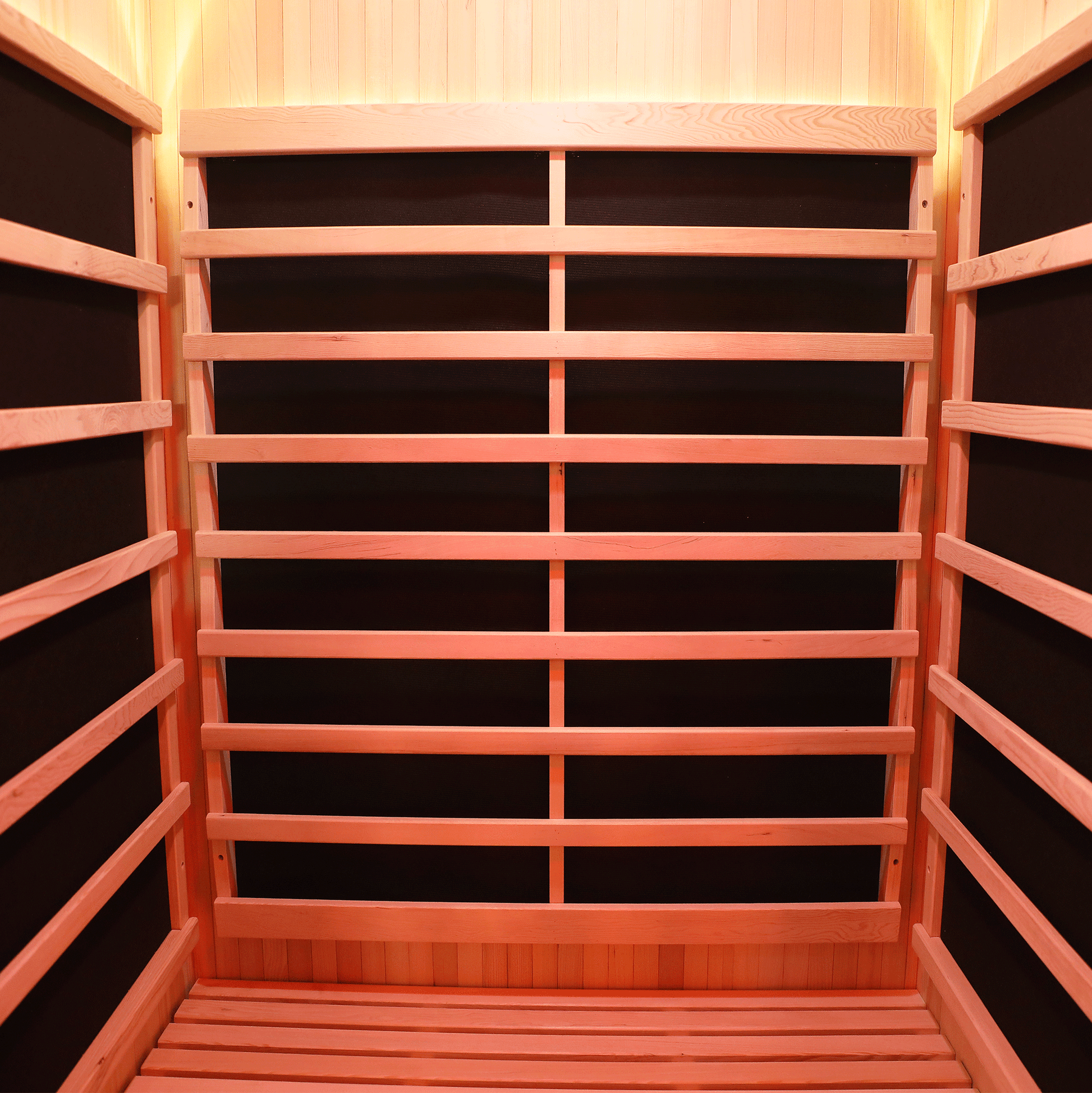

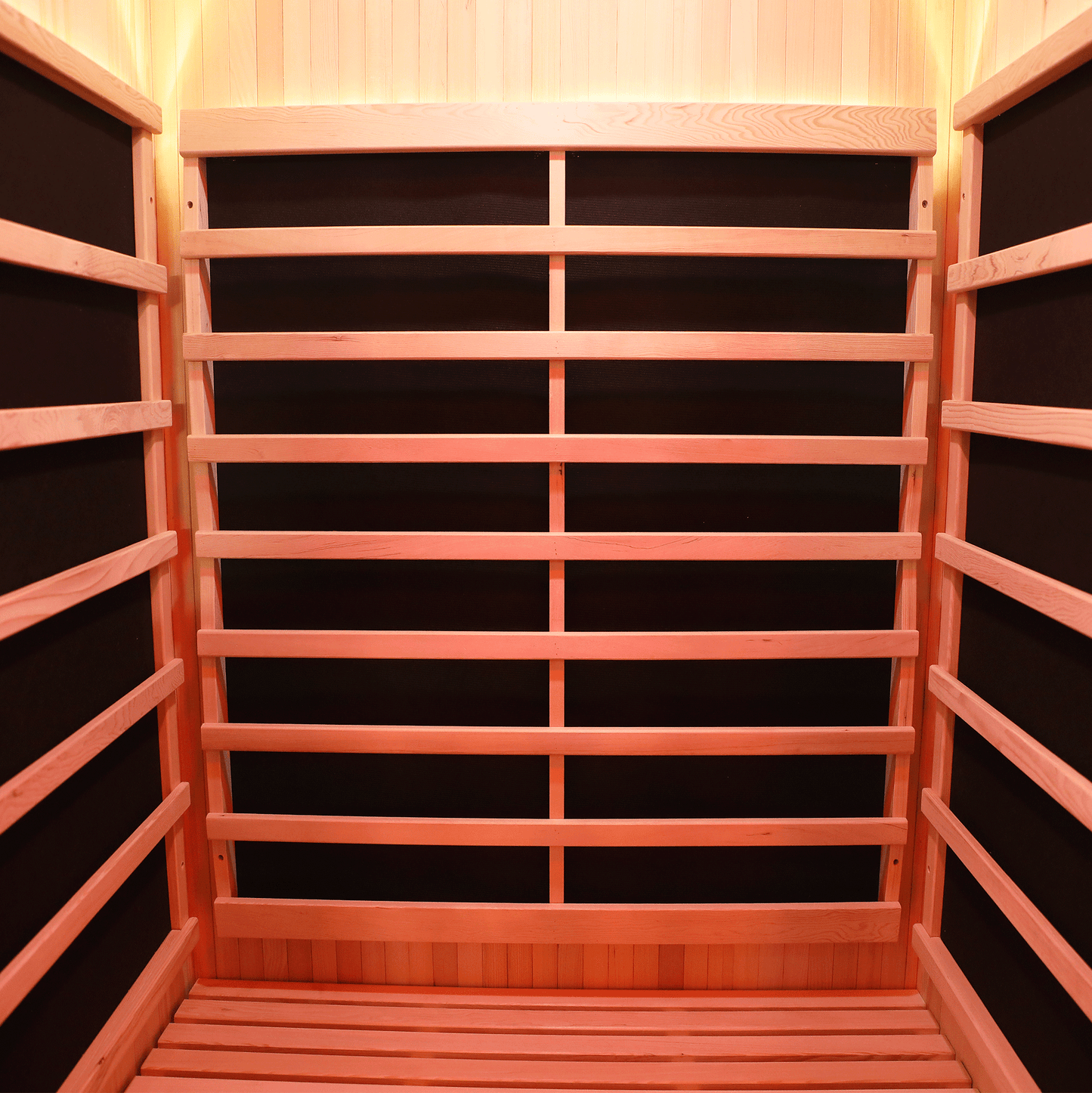

Recommended Panel Layout

Back Wall 2 panels for the main heating zone.

Side Walls 2 panels for balanced heat coverage.

Lower / Leg Area 1 panel for lower-body infrared coverage.

Best Experience 47.24 × 47.24 × 74.80 inches or smaller.

This layout ensures full-body infrared coverage for 1–3 person sauna rooms. Recommended maximum sauna size: 59.06 × 47.24 × 74.80 inches.

Electrical & Installation Details

Plug-and-play connectors simplify installation when used with compatible SaunaPartsWorld controllers.
Compatible with SaunaPartsWorld control systems.
Supports both 110V and 220V systems.
Each panel includes a pre-installed power cable.
Dedicated circuit recommended for full-load operation.

Important: If you are unsure about electrical capacity, voltage, or circuit requirements, please consult a licensed electrician before installation.

Premium Canadian Hemlock Frame

Natural thermal insulation
Warp-resistant construction
Sauna-grade wood frame
Improves heat efficiency and installation safety

Health & Performance Benefits

Comfortable far infrared heat experience
Supports relaxation after workouts or long days
Lower operating temperature compared with many traditional sauna setups
Efficient daily home sauna use
Even heat coverage when properly installed

Ideal Use Cases

DIY Infrared Sauna Build
Traditional Sauna Conversion
Infrared Panel Replacement
Home Wellness Room

Frequently Asked Questions

Can I convert my traditional sauna?

Yes. This is one of the most common use cases for this kit. It is designed for DIY sauna builds, infrared sauna upgrades, and traditional sauna conversion projects.

Do I need to remove my old heater?

You don’t need to remove your sauna heater. However, the infrared panels cannot be installed above the sauna stove.

Never run your traditional sauna heater and far infrared panels at the same time.

How much space does it cover?

This kit is ideal for 1–3 person sauna rooms. For the best experience, we recommend using it in a room around 47.24 × 47.24 × 74.80 inches or smaller.
